Beetle

Beetle! as its name implied being very small, this tiny sailplane is designed and built by Stanley Chan. The objectives to design Beetle are to test the aerobatics capability of sailplane with small wing span (26") and to test a new (very cheap) way of making sailplane. The design concluded on a flying wing platform with center fin and the whole plane is made of Coroplast only - the total material cost is less than 2 US dollars!  The wing profile is HN1038 which is one of the most slippiest profiles ever designed. This little sloper is surprisingly stable in flight and most importantly it's FAST! Its aerobatics capability is astonishing due to its small size; invert flight, inside/outside loop and roll can be carried out with ease.
Wing Span: 26"
Airfoil: HN-1038 modified
Manufacturer: Designed and built by Stanley Chan, please see an article on the making of Beetle.

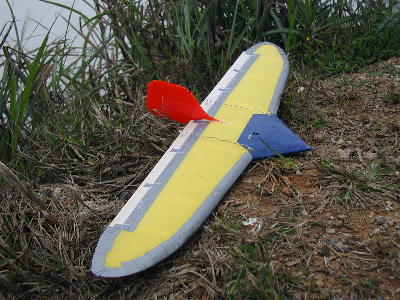

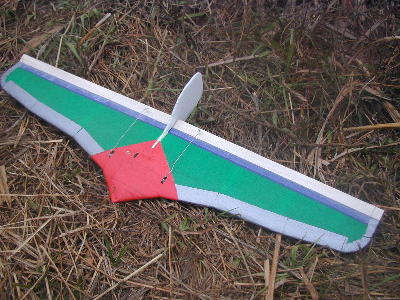

It has an interesting shape

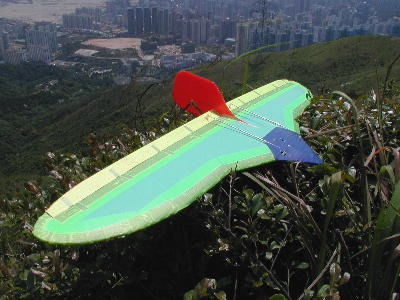

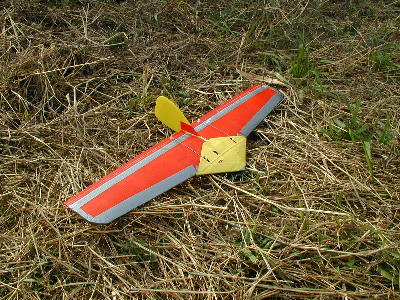

and it's made of cheap Coroplast!

Stanley and his two tiny Beetles - very small indeed!

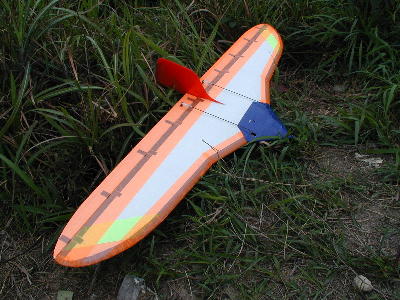

Another Beetle with elliptic wing tips

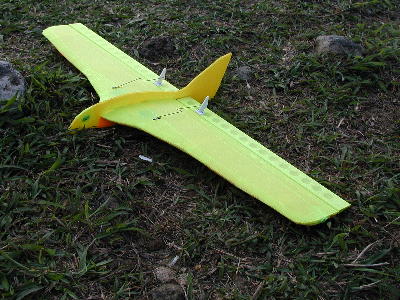

A bird like Beetle by Mak - a really fast flying  machine

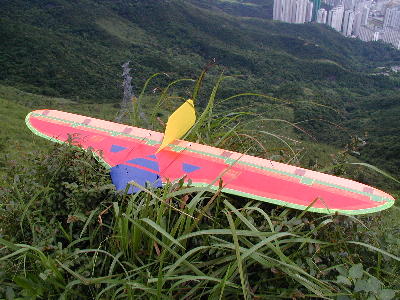

Another Beetle with 39" wingspan

A new Beetle with 52" wingspan

A new Beetle with 72" wingspan

On a highspeed flypass

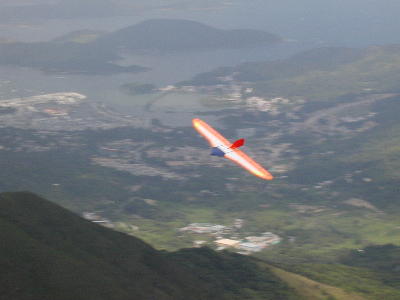

Soar majestically in Fei Ngo Shan

Peaceful soaring in Fei Ngo Shan

Speedy fly pass in Fei Ngo Shan

It's a good aerobatics sloper; invert, loop, roll with ease!

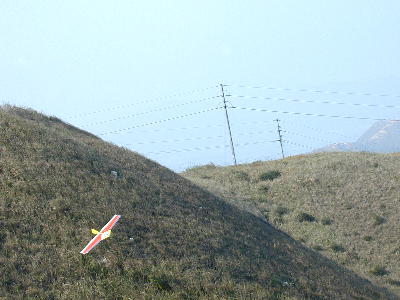

Quite difficult to spot for its thin wing

Look like a small bird.

It is surpassingly stable in flight

Look so beautiful on air

Dynamic soaring in Fei Ngo Shan (3813639 bytes)
A solid dynamic soaring machine too!

Fast! This lttile sailplane is suprisingly fast (3712151 bytes)
Fast! This little sailplane is surprisingly fast

Highspeed flypass (1891899 bytes)
Highspeed flypass - certainly fast!

Controlability is good, this little ship is very stable in flight (3832911 bytes)
Controllability is good, this little ship is very stable in flight

Stall turns with good penetrating speed (3760347 bytes)
Stall turns with good penetrating speed

High speed carving of the airspace (3833995 bytes)
High speed carving of the airspace

Invert flight (2559799 bytes)
High speed  dive and invert flight

Beetle shows off its aerobatic skill (3238967 bytes)
Beetle shows off its aerobatic skill

Good in aerobatics (3179467 bytes)
Good in aerobatics

Very good in aerobatics rolls (2722607 bytes)
Aerobatic rolls and invert flight
